5 Best Garden Sprayer Strainers in 2026: How They Work & Buying Tips

Add GardenSprayers.net as a preferred Google News source to see more of our trusted garden sprayers coverage.

A blocked nozzle can make an ordinary garden spraying job unnecessarily difficult. While planning my work around chilies, tomatoes, marigolds, lawn grass and young fruit trees, I wanted to understand why even a properly maintained sprayer could lose its spray pattern when small particles reached the nozzle. Cleaning the nozzle repeatedly was not the solution I wanted. I needed to identify where debris entered the system and whether the existing filtration arrangement was suitable.

That brought my attention to garden sprayer strainers. These small components protect different parts of a spraying system by retaining unwanted particles before they reach sensitive openings. Although they are less noticeable than pumps, hoses and spray wands, their size, mesh and installation position can affect the reliability of the entire sprayer.

Initially, I thought a finer screen would automatically provide better filtration. However, comparing mesh ratings, nozzle requirements and liquid flow showed me why that assumption was incomplete. A screen that traps more particles may also restrict liquid movement, particularly when its surface area is small or the spray mixture contains suspended material.

My buying priorities therefore became clear: correct compatibility, suitable mesh size, sufficient flow capacity, durable materials and easy cleaning. Rather than choosing a strainer from its appearance, I wanted to understand its working principle, inspect the available options and establish a sensible method for checking performance after installation.

An Overview Of Best Types of Garden Sprayers Strainers

Advertisement

Product	Title	Features	Explore

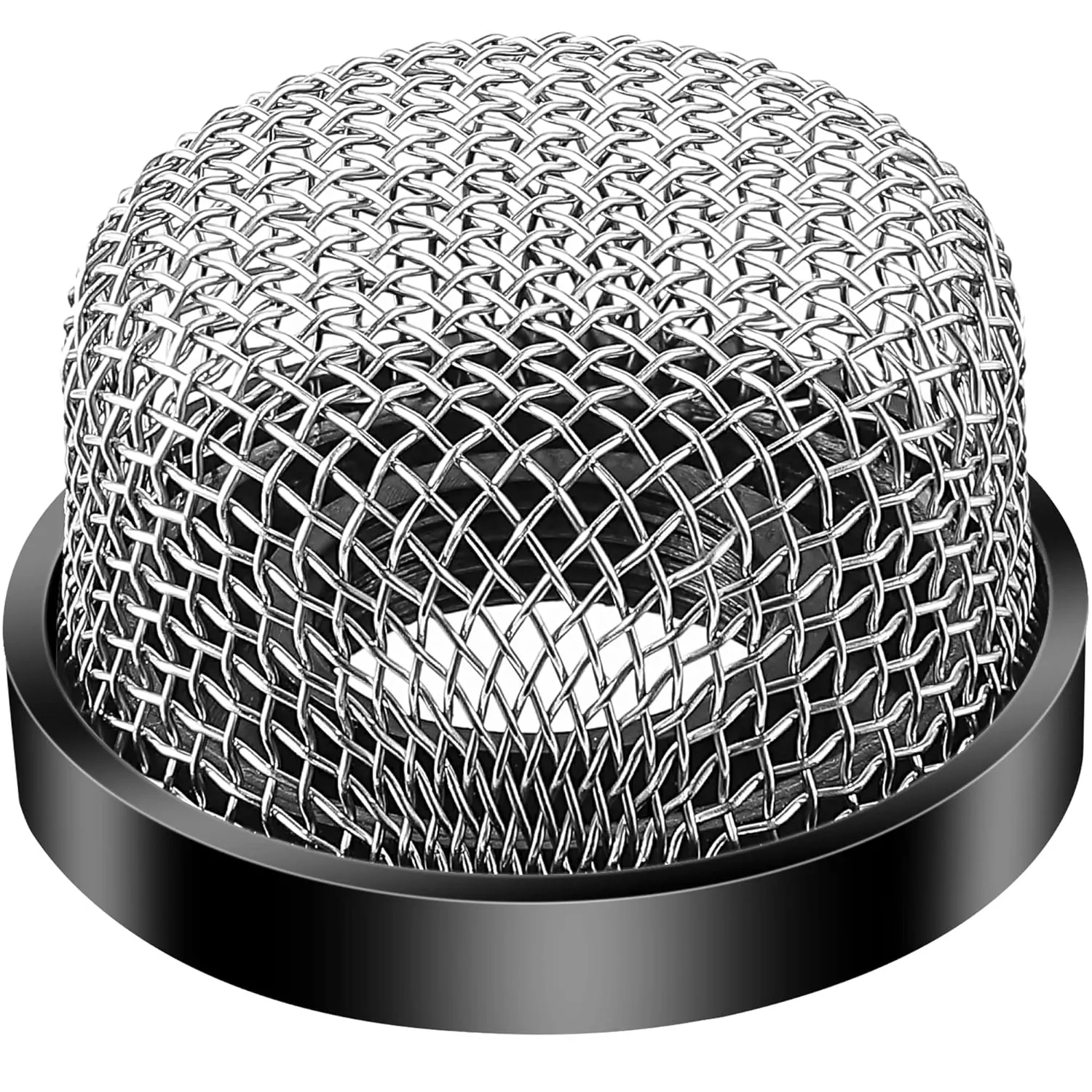

	Cosmostar Stainless Steel Strainer	Strong and durable PVC base Helps prevent clogging Keeps water flow smooth and consistent	4.9 ⭐⭐⭐⭐⭐ Check Price

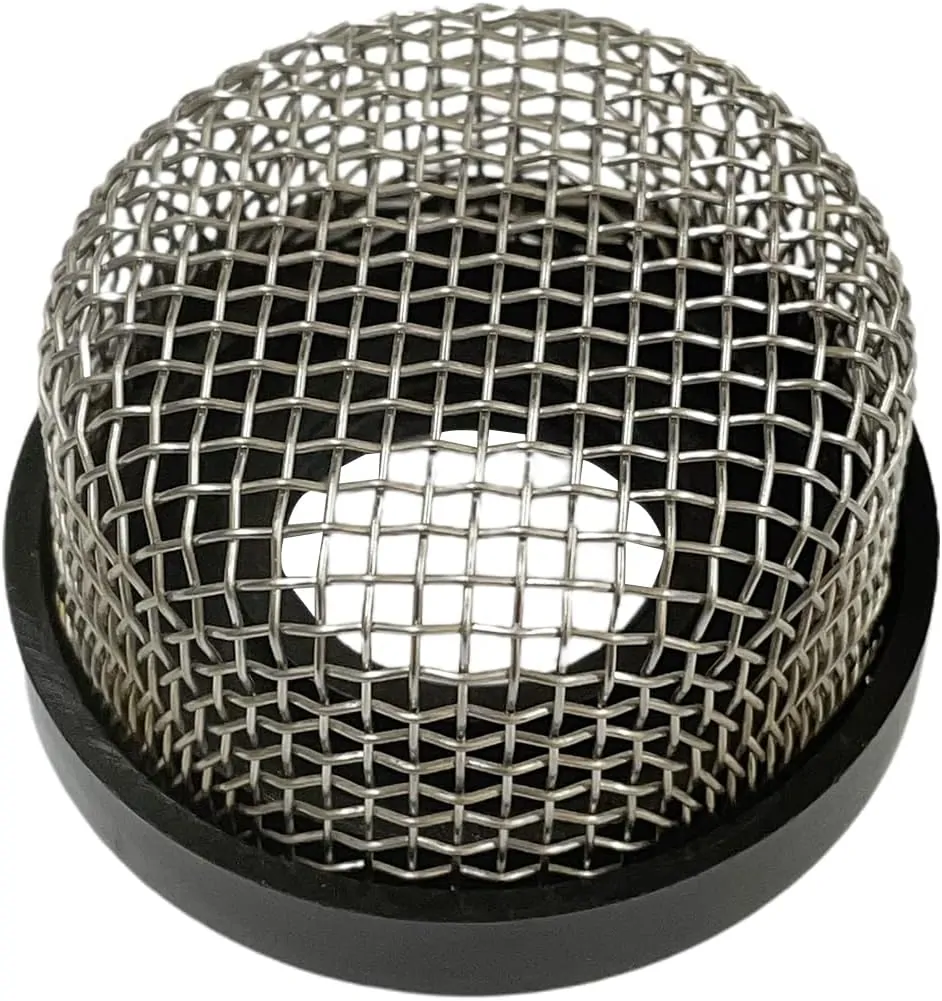

	Saillong Stainless Steel Mesh Strainer	Made from stainless steel Includes a durable PVC base Supports smooth water movement	4.7 ⭐⭐⭐⭐⭐ Check Price

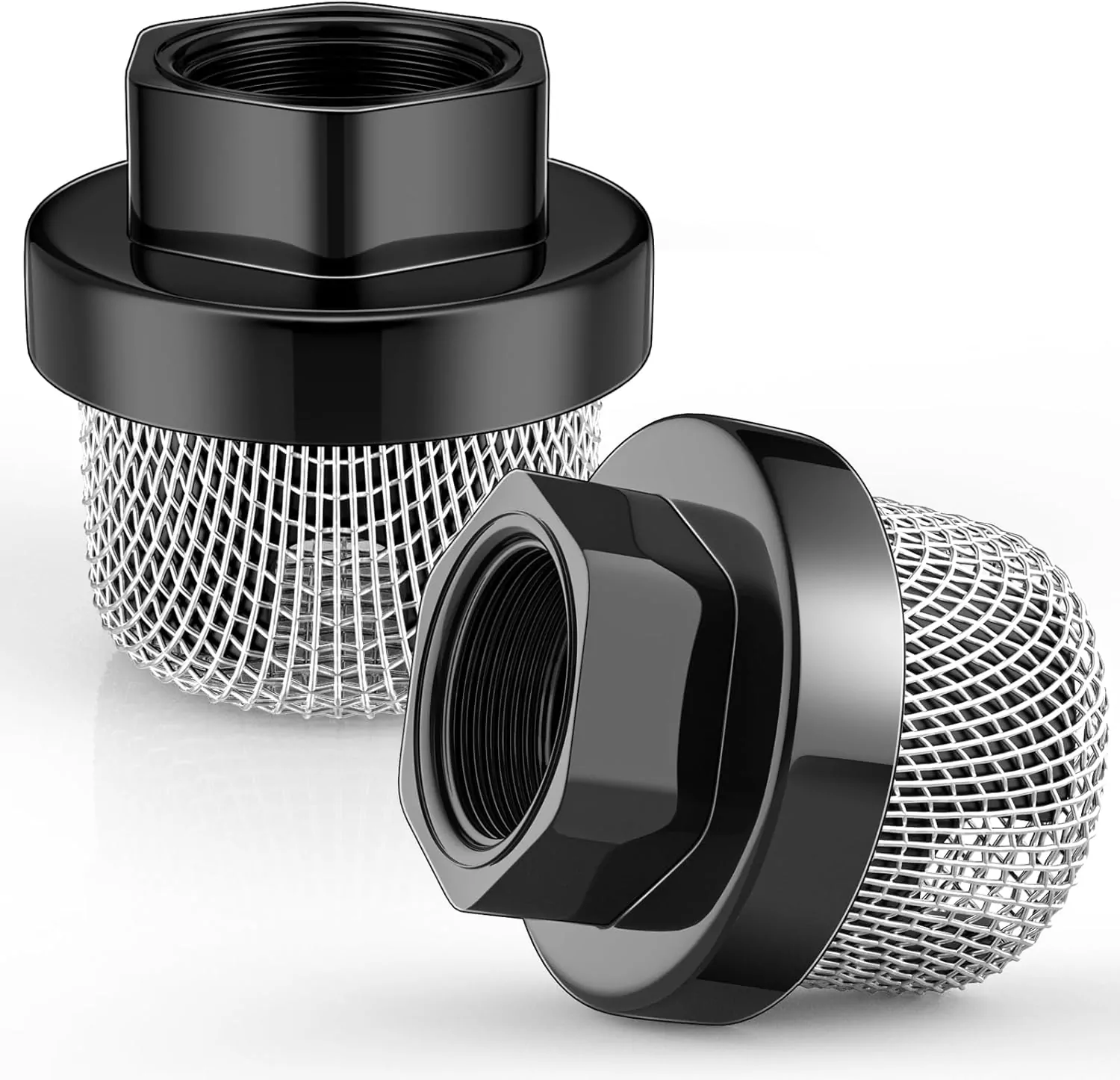

	Nuanchu 2 Pcs Hose Inlet Strainer Filter Suction Strainer	Built with durable plastic material Lightweight and compact design Helps protect the pump system	4.8 ⭐⭐⭐⭐⭐ Check Price
	Qtcial Stainless Steel Mesh Strainer	Dual-purpose stainless steel construction Accurate 3/4 inch threading Designed for long-lasting use	4.6 ⭐⭐⭐⭐⭐ Check Price

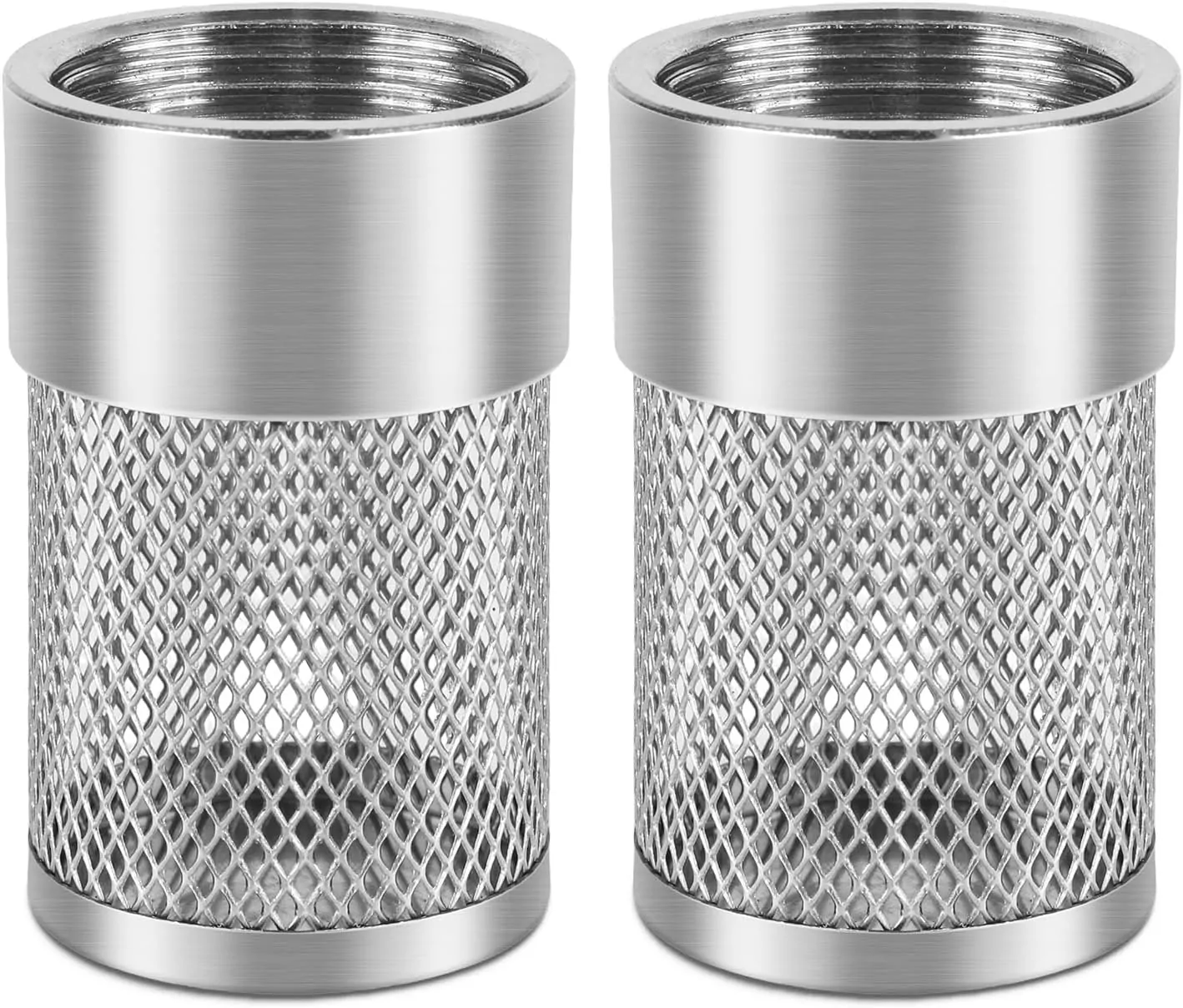

	VQQLII Garden Hose Strainer	25MM inlet size design Twist-lock connection system Helps protect pump components	4.5 ⭐⭐⭐⭐⭐ Check Price

Why Garden Sprayer Strainers Matter

A garden sprayer strainer is a screened component that allows liquid to pass while retaining particles larger than its openings. Depending on its position, it may protect the filling opening, pump intake, delivery hose or nozzle. Its main purpose is to reduce the movement of unwanted debris through the spraying system.

During routine garden work, contamination can enter from several places. Dust may settle around the tank opening, water may contain sediment, and residue from an earlier application may remain inside an inadequately cleaned sprayer. Even when the water looks clear, particles may be present that are large enough to obstruct a small nozzle passage.

I considered a typical 45-minute spraying session involving tomato plants and nearby marigolds. If three nozzle-cleaning interruptions took four minutes each, the job would require another 12 minutes. That is a workload calculation rather than a measured saving, but it demonstrates why reliable filtration can be useful during repeated spraying.

However, a strainer cannot solve every problem. It does not remove dissolved contaminants, make unsuitable water safe or correct an improperly mixed spray product. Its effectiveness depends on particle size, screen condition and the design of the complete spraying system.

• Debris control: Helps prevent unwanted particles travelling through the sprayer.
• Pump protection: Reduces the risk of larger particles entering sensitive pump components.
• Nozzle protection: Helps prevent blockage of small spray passages.
• Maintenance access: Collects particles where they can be inspected and removed.

Before purchasing anything, I would first inspect the existing screens and identify where contamination was entering. If the tank-filling area was the problem, a suitable basket could help. If the nozzle repeatedly blocked despite clean filling water, I would inspect the suction screen, nozzle strainer and internal residue before deciding which component needed replacement.

5 Best Garden Sprayer Strainers for Cleaner Spray

Garden sprayer strainers are small but essential components that play a major role in garden care. Installed inside the sprayer system, their main purpose is to remove debris, dirt, sediment, and other unwanted particles from the liquid solution before spraying. This helps ensure that plants receive a clean and pure solution while protecting the sprayer from blockages and possible damage.

Which Garden Sprayer Strainer Type Fits?

After identifying the filtration problem, I compared the different strainer types. They share the same basic purpose, but their positions, screen areas and operating requirements are not identical.

Tank-Filling and Basket Strainers

A tank-filling strainer is positioned at the filling opening to catch visible debris before liquid enters the tank. A basket strainer generally provides a deeper screened collection area, although the exact design varies between sprayers.

For a four-litre handheld sprayer used around marigolds and petunias, I considered a removable filling basket convenient because I could inspect it before closing the tank. However, this type would not capture residue already present inside the sprayer or particles introduced after filling.

Suction, In-Line and Nozzle Strainers

A suction strainer sits at the pump intake, often inside the tank. It prevents larger debris from reaching the pump, but its screen must allow sufficient liquid supply. An undersized or heavily blocked suction screen can restrict flow and interfere with pump operation.

An in-line strainer is installed within a compatible liquid line. Some models have removable bowls or caps, allowing the screen to be cleaned without replacing the complete housing. These designs can be useful for larger spraying systems, provided their fittings, flow ratings and pressure limits match the equipment.

A nozzle strainer is positioned near the nozzle assembly. It protects the final spray opening, where relatively small particles may cause blockage. Because nozzle screens often have limited surface area, they can become restrictive when upstream filtration is inadequate.

These components work together rather than independently. Liquid may pass through a filling basket, suction screen, pump and delivery-line filtration before reaching the nozzle. However, not every sprayer contains every filtration stage.

For a small handheld unit, I recommend checking the original filling and nozzle screens first. For a backpack sprayer used across larger vegetable beds and lawn areas, I would also examine the suction screen and any built-in in-line assembly. Adding more strainers is useful only when they solve a specific problem without creating unnecessary flow restriction.

How Garden Sprayer Strainers Actually Work

The working principle is straightforward. Liquid enters the screened area, passes through the openings and continues through the spraying system. Particles too large to pass are retained on the upstream side of the screen.

As debris accumulates, the available open area becomes smaller. This increases resistance to liquid movement and may create a pressure difference across the screen. Depending on the pump and strainer position, the result can be reduced nozzle output, unstable spraying or insufficient liquid reaching the pump.

I considered a clean-water comparison using a compatible nozzle and measuring container. If the nozzle delivered 600 millilitres in 30 seconds, the calculated flow would be 1.2 litres per minute. If another measurement under identical conditions produced 480 millilitres, the flow would fall to 0.96 litres per minute, representing a 20% reduction.

That difference would justify checking the filtration system, but it would not prove that the strainer caused the restriction. Pump pressure, battery condition, nozzle wear and other blockages can also affect output.

Another important factor is screen surface area. Two strainers with the same mesh rating may behave differently if one provides substantially more usable open area. A larger screen may accommodate more collected debris before becoming restrictive, although performance also depends on screen construction and liquid conditions.

• Maintain consistent pressure when comparing nozzle output.
• Inspect the screen for accumulated particles and damaged openings.
• Check screen seating to prevent unfiltered liquid bypassing the mesh.
• Investigate reduced flow before increasing operating pressure.

I also distinguished between strainers and finer filters. Both use physical particle separation, but strainers commonly remove larger debris, while finer filtration elements retain smaller particles. Manufacturers sometimes use the terms interchangeably, so the actual opening size and intended function matter more than the label.

For my selection, I preferred a screen that supported the sprayer’s required flow rather than one advertised only for fine filtration.

Choosing the Correct Strainer Mesh Size

Mesh size was one of the most important details in my buying comparison. A higher mesh number generally indicates smaller openings, but the relationship depends on wire thickness and screen construction.

Mesh count commonly refers to the number of openings per linear inch. Micron ratings describe particle dimensions more directly. One micron equals 0.001 millimetres, meaning a 200-micron opening is 0.2 millimetres wide.

I compared common mesh ratings to understand their approximate opening sizes. However, I would always verify the actual specification because mesh-to-micron conversions are not identical for every screen construction.

The main lesson was that finer mesh is not automatically better. A screen that traps more particles may also restrict flow, especially when the spray mixture contains suspended material.

For example, if a nozzle manufacturer specified a 50-mesh screen, I would not automatically replace it with a 100-mesh version. I would first confirm whether the finer screen was approved for the nozzle, formulation and operating pressure.

Some spray formulations contain suspended particles that must remain in the liquid during application. An unsuitable fine screen can retain these particles and affect delivery. This is why the correct mesh depends on the nozzle and product formulation, not simply on whether I am spraying tomatoes, flowers or lawn grass.

My recommendation is to follow the sprayer and nozzle manufacturer’s filtration requirements and change the mesh only when there is a clear technical reason.

Checking Compatibility Before Buying Strainers

After narrowing down the mesh rating, I examined compatibility. A well-made strainer can still be unsuitable if its dimensions, fittings or flow requirements do not match the sprayer.

My first step was to identify the exact sprayer model and inspect the original component. I would compare the manufacturer’s replacement part number, screen dimensions, connection type and installation position before considering an alternative.

For nozzle strainers, the screen length, holder shape and sealing arrangement matter. For in-line strainers, the fitting diameter, thread standard, pressure rating and flow direction must be correct.

A fitting described as half-inch is not necessarily interchangeable with every other half-inch fitting. Nominal dimensions and thread standards differ, and forcing an incorrect connection can damage the housing or create leakage.

For a battery-powered backpack sprayer, I would also consider pump output. A screen suitable for a low-output handheld unit may not provide sufficient flow capacity for a larger system, even if it physically fits.

• Model identification: Confirm the exact sprayer and nozzle models.
• Replacement compatibility: Match the original part number where possible.
• Screen dimensions: Check length, diameter and seating arrangement.
• Connection specifications: Verify thread type and pressure rating.
• Chemical suitability: Confirm compatibility with intended spray liquids.

I would also check whether replacement screens and gaskets were available separately. A low-cost housing may become expensive to maintain if the complete assembly must be replaced whenever one small component is damaged.

For my buying decision, exact compatibility mattered more than a product listing claiming universal fit.

Which Strainer Materials Last Longer?

Once I understood the correct dimensions and mesh requirements, I compared materials. The screen receives most of the attention, but the housing, seals, threads and fittings also influence durability.

Stainless Steel, Nylon and Plastic

Stainless steel mesh can provide good dimensional stability and resistance to many forms of corrosion. However, its suitability depends on the steel grade and chemicals involved. Stainless steel is not resistant to every pesticide, fertiliser or cleaning solution.

Nylon mesh is lightweight and flexible, making it suitable for certain removable screens and baskets. However, chemical exposure, heat and repeated mechanical stress may affect its condition.

Plastic screens and housings vary considerably. Some engineering plastics provide good strength and chemical resistance, while poorly manufactured components may have thin walls, weak threads or rough moulding.

Before purchasing, I would inspect the screen edges, supporting frame and housing closure. A properly constructed screen should sit securely without obvious gaps that allow liquid to bypass the filtration surface.

For a post-purchase handling check, I considered removing and refitting a screen ten times under clean conditions. This could reveal weak seating or fragile edges, but it would not prove long-term durability under chemical exposure.

• Mesh construction: Inspect for broken strands and uneven openings.
• Housing strength: Check for cracks and poorly finished threads.
• Seal quality: Verify gasket material and proper seating.
• Repairability: Prefer replaceable components where practical.

Seals deserve particular attention because an unsuitable gasket may swell, harden or lose its sealing ability after exposure to certain chemicals. Even a strong metal screen cannot prevent leakage if the surrounding seal fails.

I also considered the difference between a disposable assembly and a serviceable housing. A replaceable screen may reduce future expenses, but only when compatible parts are actually available.

For occasional handheld spraying, a simple compatible plastic assembly may be sufficient. For frequent work across larger areas, a stronger serviceable design may justify a higher initial cost. I would judge durability through material specifications and construction rather than assuming every expensive component lasts longer.

Where to Buy Garden Sprayer Strainers

After completing the technical comparison, I considered where to purchase the correct replacement. Local garden suppliers, agricultural equipment shops, manufacturer parts departments and reputable online sellers each offer advantages.

Buying locally allows direct inspection. I could compare a clean original component with the proposed replacement and examine the mesh, housing and connections before paying. However, I would never take a chemically contaminated component into a shop.

Online buying may provide access to a wider selection, but photographs alone are not enough. I would verify the exact model number, dimensions, manufacturer identification and package contents.

One important question is whether the listing includes the complete strainer assembly or only a replacement screen. If the existing housing is cracked, buying a screen alone will not solve the problem.

I would also compare the total delivered cost, including shipping and any additional seals or fittings. A low displayed price may become less attractive when essential parts are sold separately.

• Seller identity: Confirm who supplies the component.
• Package contents: Check whether the housing, screen and seals are included.
• Return conditions: Verify the process for incorrect or damaged parts.
• Warranty: Check regional coverage and exclusions.
• Spare parts: Ask whether replacement screens remain available.

My preference would be a seller who could confirm the correct replacement and explain exactly what was included. I would not accept uncertain compatibility simply because the price was attractive.

After delivery, I would inspect the screen for tears, the housing for cracks and the sealing surfaces for damage before installation.

Installing Garden Sprayer Strainers Correctly

Installation begins with safety. Before opening any strainer housing, I would stop the sprayer, isolate its power source where required and release pressure according to the manufacturer’s instructions.

I would also ensure the equipment had been cleaned appropriately, especially if it had previously contained pesticide. The original strainer’s position and orientation should be recorded before removal.

Some in-line assemblies have flow-direction markings, while other screens depend on a particular seating arrangement. Incorrect installation can affect filtration or create leakage.

I would fit the replacement carefully without forcing threads or overtightening plastic connections. If a gasket was required, I would use the correct compatible part rather than an improvised substitute.

Testing Flow With Clean Water

After installation, I would begin with a clean-water test. This allows the equipment to be checked for leaks, flow restrictions and spray-pattern problems before any approved chemical application.

For a practice test using a four-litre sprayer, I considered collecting nozzle output for one minute at the recommended operating pressure. If the nozzle delivered 800 millilitres, the calculated flow would be 0.8 litres per minute.

I would repeat the measurement under the same conditions and compare it with the nozzle manufacturer’s specifications or a reliable baseline. The measured value should not be treated as a universal performance target.

• Leak inspection: Check the housing and connections using clean water.
• Flow measurement: Record nozzle output at consistent pressure.
• Spray-pattern check: Look for irregular distribution.
• Pump supply: Confirm that liquid reaches the pump properly.
• Final inspection: Depressurise before checking fittings again.

If flow decreased after fitting the new screen, I would investigate the mesh, seating and possible restrictions before increasing pressure. A strainer that excessively reduces output may be unsuitable even when it fits physically.

Only after satisfactory clean-water checks would I prepare the sprayer for an approved garden application.

Testing Strainers During Garden Spraying

The practical value of a strainer becomes clearer during repeated spraying work. I considered how different filtration arrangements could support activities around vegetables, flowers, lawns and reachable young fruit trees.

For spring spraying around tomato plants and marigolds, I would use a nozzle and filtration arrangement approved for the selected product. Before filling, I would check the tank for residue and inspect the filling basket for visible debris.

In a planned 30-minute clean-water trial, I could divide spraying into three ten-minute periods. I would record nozzle output, visible particles retained by the screen and any interruptions. This would help identify whether debris accumulation affected flow during that particular session.

For chilies and tomatoes, consistent nozzle output matters because changes in flow can affect application rate. However, a strainer cannot correct poor walking speed, incorrect pressure or unsuitable nozzle selection.

When spraying around marigolds and petunias, I would also inspect the spray pattern. An irregular pattern might indicate blockage, but nozzle damage or pressure variation could produce similar symptoms.

For lawn applications, I would pay particular attention to whether the strainer supported the required flow over longer operating periods. A screen with insufficient usable area may need frequent cleaning when exposed to debris.

Around young mango and lemon trees, I would focus on reliable filtration during repeated spraying rounds. However, a strainer does not increase spraying reach or make an unsuitable application method safe.

For any pesticide or fertiliser trial, I would use only a product labelled for the crop and application method, follow its specified dilution and verify compatibility with the sprayer. Without that information, a clean-water test is more appropriate than inventing a chemical mixture.

My main recommendation is to assess filtration through measurable equipment behaviour, including nozzle output, blockage frequency and cleaning requirements. Crop improvement should never be attributed to a strainer without appropriate evidence.

Cleaning and Maintaining Strainer Screens

Even a well-matched strainer needs regular cleaning. Its purpose is to collect debris, so inspection and removal of that material are part of normal maintenance.

After spraying, I would follow the product label and equipment instructions for cleaning and rinsate disposal. The system must be depressurised before any filtration housing is opened.

I would remove the screen carefully and inspect it for particles, damaged mesh and residue around the edges. Gentle rinsing or an approved soft brush may be suitable, depending on the screen material and manufacturer’s guidance.

For a practice maintenance comparison, I considered checking the same screen after three clean-water sessions and recording the amount of visible debris. This could help establish a sensible inspection routine, although actual chemical applications might require different cleaning procedures.

• Pressure release: Depressurise before opening housings.
• Gentle cleaning: Use approved methods that protect the mesh.
• Damage inspection: Check screen edges and sealing surfaces.
• Replacement: Change torn or permanently damaged screens.

I would also inspect the other filtration stages. Cleaning a nozzle screen while leaving a blocked suction screen inside the tank may not restore normal performance.

During storage, I would follow the equipment instructions for drying and protecting components. A clean screen should be kept where its mesh cannot be crushed or distorted.

Repeated cleaning is not automatically proof that a strainer is poorly made. However, unusually frequent blockage may indicate contaminated filling water, residue inside the tank, insufficient screen area or an unsuitable mesh rating.

Safety and Chemical Compatibility Checks

Strainer maintenance involves more than preventing blockages. Components may contain pressurised liquid or chemical residue, making safe handling essential.

The most important precaution is never to open a strainer housing while the system remains pressurised. I would stop the pump, isolate power where necessary and release pressure using the manufacturer’s procedure.

I would also avoid removing a blocked screen and continuing to spray without it. Although this might temporarily restore flow, it could expose the pump and nozzle to debris and conflict with equipment requirements.

Chemical compatibility must include the entire assembly. A stainless steel screen may be suitable for a particular liquid while its gasket or plastic housing is not. The complete component must be approved for the intended formulation.

• Protective equipment: Follow the product label’s PPE requirements.
• Pressure safety: Never loosen pressurised connections.
• Cleaning chemicals: Avoid unapproved solvents or mixtures.
• Rinsate management: Keep contaminated liquid away from drains and water sources.
• Damaged components: Replace parts affected by chemical exposure or mechanical damage.

I would never mix chemicals simply to test whether a strainer could withstand them. Compatibility should be established from reliable material and equipment information, not uncontrolled experiments.

For vegetable and flower gardens, I would also consider nearby people, pets, edible crops and sensitive plants before spraying. A good strainer cannot prevent drift, incorrect mixing or unsafe application practices.

My preference was therefore a component with reliable sealing, accessible maintenance and clearly documented chemical suitability.

Repairability and Total Ownership Cost

The initial price of a strainer is only one part of its cost. Screens, seals, cleaning time and replacement availability all influence long-term value.

I considered comparing a complete replacement assembly with a serviceable model. If a complete assembly cost 1,200 currency units and two replacement screens cost 200 units each, the calculated parts expense would be 1,600 units. These are hypothetical amounts used for cost comparison, not current selling prices.

The more important question is how often components actually need replacing. A durable housing with inexpensive screens may offer good value, but only when compatible replacements are available.

I would also check warranty conditions. Some warranties cover manufacturing defects but exclude normal wear, chemical damage or incorrect installation.

• Initial cost: Compare complete assemblies with replacement screens.
• Maintenance cost: Consider cleaning and replacement requirements.
• Spare-part supply: Check whether screens and seals can be purchased later.
• Warranty coverage: Understand what damage or failure is excluded.

For occasional handheld spraying, a simple compatible assembly may be the most practical choice. For equipment used frequently across larger garden areas, easy screen replacement and reliable housing construction may justify a higher initial expense.

I would not assume that the most expensive product provides the longest service life. The better purchase is the one that fits correctly, supports the required flow and remains economical to maintain.

My Final Garden Sprayer Strainer Advice

My interest in garden sprayer strainers began with the inconvenience of blocked nozzles, reduced spray flow and repeated cleaning. As I examined the available options, I realised that proper filtration depends on several connected decisions rather than one impressive specification.

The first priority is identifying where debris enters or accumulates. A filling basket can reduce contamination during filling, a suction screen protects the pump intake, and a compatible nozzle strainer protects the final spray opening. Each component serves a different purpose.

The second priority is choosing the correct mesh. A finer screen is not automatically more suitable. The sprayer, nozzle, flow requirement and intended formulation must guide the selection. For a small handheld sprayer used around vegetables and flowers, I recommend checking the original filling and nozzle strainers before purchasing anything additional. If either component is damaged, look for the manufacturer’s correct replacement.

A suitable garden sprayer strainer should protect the spraying system without creating unnecessary restrictions. It will not eliminate every spraying problem, but correct selection, installation and maintenance can reduce avoidable interruptions and help keep equipment working as intended.
